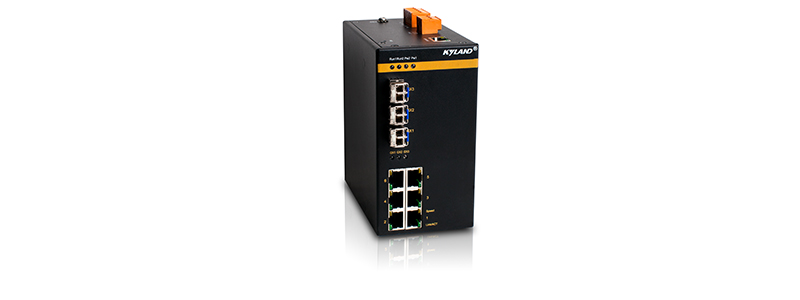

SICOM3000BA serial is designed for use in explosive atmosphere areas, small size, low-power dissipation, comply with intrinsic safety, have advanced insulation performance and damp proofing, support fiber cascade connection, transmitting and forwarding. Support multiple redundant protocol, remote monitoring and self-manage functions. That is suitable for explosive atmospheres, high dust, corrosive conditions, such as coal mine, chemical factory, oil field and so on.
3 Gigabit SFP slots, 6 10/100Base-T(X) ports
Full load power consumption is as low as 5.2W
Comply with explosive atmospheres standard IEC60079-11(GB3836.4)
Dry contact for warning signal,support NO and NC
Support DIN-Rail, Panel or Embedded Mounting
| Software Functions | |
| Switching | Support VLAN,PVLAN Support port trunking Support port flow control Support port speed limit Support broadcast storm control |
| Redundancy | Support DT-Ring,DT-Ring+, DT-VLAN with the recovery time<50ms Support STP/RSTP |
| Multicast | Support IGMP Snooping Support static multicast |
| Network Security | Support SSH Support TACACS+ |
| Service Quality | Support SP, WRR queue scheduling |
| Management & Maintenance | Support Console, Telnet, WEB management methods Support SNMPv1/v2c/v3, Kyvision centralized management Support software upgrade by FTP Support power, port and ring alarm Support RMON Support port mirroring Support LLDP Support Link-check |
| Clock Management | Support SNTP Client |
| Technical Specifications | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T and 100Base-FX) IEEE 802.3z (1000Base-X) IEEE 802.3x (Flow control) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1D(STP) IEEE 802.1w (RSTP) |
| Switch Properties | Priority Queues: 4 Number of VLANs: 256 VLAN ID: 1–4093 Number of Multicast Groups: 256 MAC table: 8K Packet Buffer: 1Mbit Packet Forwarding Rate: 5.4Mpps Switching Delay:<10μs |
| Interface | Gigabit Port: 1000Base-X, SFP slot Fast Ethernet Port: 10/100Base-T(X), RJ45 port Console Port: RS232,RJ45 connector Alarm Contact: Dry contact for warning signal,support NO and NC 3-pin 5.08mm-spacing plug-in terminal block 0.5A at 125Vac,2A at 30Vdc |
| LED | Running LED: Run2 Power LED: PWR1,PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) Non-housing version support LED connector for users. |
| Power Requirements | Power Input: 18VDC(9-21VDC) 12-24VDC(9-36VDC) 12VDC(9-18VDC) 5VDC(4.5-5.5VDC) Power Terminal: 5-pin 5.08mm-spacing plug-in terminal block Power Consumption:<5.2w Overload Protection: Support Reserve Protection: Support Redundancy Protection: Support |

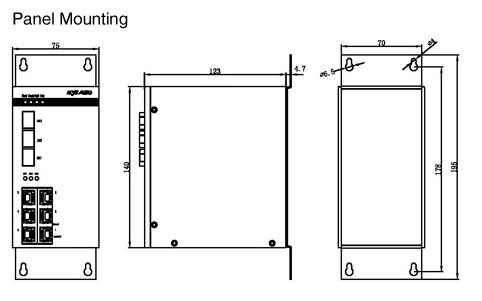

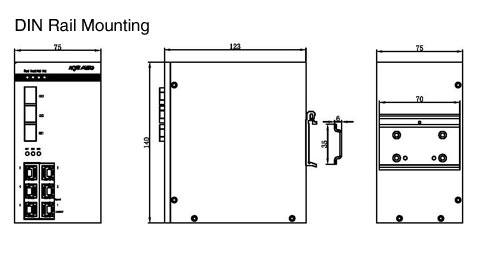

| Physical Characteristics | Housing: Metal, fanless Cooling: Natural convection, fanless Protection Class: IP40 Dimension: 75mm×140mm×123mm(W×H×D) 134mm×61.3mm×101mm(Non-housing)(W×H×D) Weight: 1.0Kg 0.3Kg(Non-housing) Mounting: DIN-Rail or Panel Mounting Embedded Mounting |
| Environmental Limits | Operating Temperature: -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% RH |
| Quality Assurance | MTBF: 384,273 hrs Warranty: 5 years |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz–2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz–150kHz);10V(150kHz–80MHz) Machinery: IEC60068-2-6(Vibration) IEC60068-2-27(Shock) IEC60068-2-32(Free-fall) General Industrial: IEC61000-6-2 IEC61000-6-4 Explosive atmosphere standard: IEC60079-0(GB/T3836.1), IEC60079-1(GB/T3836.2), IEC60079-7(GB/T3836.3), IEC60079-11(GB/T3836.4) |
| SICOM3000BA-EC-Ports-PS1-PS2 | |
| SICOM3000BA-C-Ports-PS1-PS2 | |
| EC | Non-housing and Conformal Coating |
| C | Conformal Coating |
| Ports | |
| 3GX6T | 3×1000Base-X, SFP slots; 6×10/100Base-T(X) RJ45 ports |
| 2GX6T | 2×1000Base-X, SFP slots; 6×10/100Base-T(X) RJ45 ports |
| PS1-PS2 | |
| Housing Version | |
| L5-L5 | 12-24VDC(9-36VDC), Redundant power inputs |
| L6-L6 | 12VDC(9-18VDC), Redundant power inputs |
| Non-housing version | |
| L4 | 18VDC(9-21VDC), Single power input |
| L6-L6 | 12VDC(9-18VDC), Redundant power inputs |
| L7 | 5VDC(4.5-5.5VDC), Single power input |
| Accessories | |
| Gigabit SFP module | Please refer to Gigabit SFP module ordering table |
| DT-BGAZ-05 | Panel for panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
