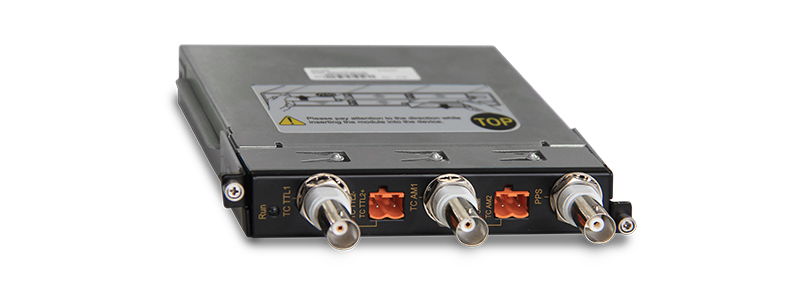

IRIG-B Module
PTP to IRIG-B convert module
Product Overview

IRIG-B PTP clock converter output module is specifically designed for SICOM3028GPT series which support PTP protocol. It realizes the conversion from PTP to IRIG-B clock and PPS (Pulse Per Second). This allows the IRIG-B format industrial devices to receive PTP high precision clock through our switches conveniently. This enables a high precision synchronization in the whole industrial network. The module provides two IRIG-B (DC) outputs, two IRIG-B (AC) outputs and one PPS output.

Key Features

Designed for the SICOM3028GPT-L2GT,SICOM3028GPT-L2FT,SICOM3028GPT-L3GT,SICOM3028GPT-L3FT and managed by the chassis.
PTP to IRIG-B high precision clock converting
2 IRIG-B(DC), 2 IRIG-B(AC), and 1 PPS outputs
Supports IRIG-B000,B001,B002,B003,B004,B005,B006,B007,B120,B121,B122,B123,B124,B125,B126,B127 output
Supports hot-swap for easy maintenance (only can replace the same type of module)

Specifications
Product Specifications
Interface IRIG-B(DC):
TTL, +5V level, 50Ω, trigger by rising edge, port load: 75mA, BNC connector or 2-Pin 5.08mm-spacing plug-in terminal block socket
IRIG-B(AC):
Vp-p software adjustable, 600Ω, modulation ratio software adjustable, BNC connector or 2-Pin 5.08mm-spacing plug-in terminal block socket
PPS:
TTL, +5V level, 50Ω, trigger by rising edge, pulse width 20ms-200ms, software adjustable with step of 1ms, BNC connector
LED LED on front panel
Module running LED: Run
Power Requirements Power input: 3.3VDC
Power terminal: A type interface (powered by backplane)
Power consumption: <1W
Physical Characteristics Housing: Metal
Cooling: Natural cooling, fanless
Dimensions(WxHxD): 122.6mm×20.25mm×106.6mm(4.83×0.80×4.20 in.)
Weight: 0.35Kg (0.772 pound)
Environmental limits Operating temperature: -40°C to +85°C (-40°F to 185°F)
Storage temperature: -40°C to +85°C (-40°F to 185°F)
Ambient Relative Humidity: 5% to 95% (non-condensing)
Quality assurance Warranty: 5 years
Approvals CE, FCC
Mechanical Drawing

Ordering Information

SM6.6-PTP-BO-0.5U: Irig-B module, 2 IRIG-B(DC), 2 IRIG-B(AC), and 1 PPS outputs
