6 port Layer 2 managed embedded switches
Product Overview

SICOM3006 is managed embedded Industrial Ethernet Switch. SICOM3006 supports 2 10/100Base-T(X) ports, 4 10/100BaseT(X) or 100Base-FX ports. SICOM3006 provides 3.15-3.45VDC redundant power inputs. It works in wide operating temperature range from -40 to 85°C, and support Console, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c.

Key Features

2 10/100Base-T(X) ports, 4 10/100Base-T(X) or 100Base-FX ports
Embedded mounting and small design simplify integration
Supports DT-Ring and STP/RSTP

Software Functions
Switching Support VLAN, PVLAN
Support port trunking
Support port flow control
Support port speed limit
Support broadcast storm control
Redundancy Support DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms
Support STP/RSTP
Multicast Support IGMP Snooping
Support GMRP
Support static multicast
Service Quality Support SP and WRR queuing
Support ACL
Management & Maintenance Support Console, Telnet, WEB management methods
Support SNMPv1/v2c, Kyvision centralized management
Support software upgrade by FTP
Support IP/MAC address conflict, power, port and ring alarm
Support RMON
Support port mirroring
Support LLDP
Support Link-check
Clock Management Support SNTP Server/Client
Product Specifications
Standard IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX and 100Base-FX)
IEEE 802.3x (flow control)
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1D(STP)
IEEE 802.1w (RSTP)
Switch Properties Priority Queues: 4
Number of VLANs: 256
VLAN ID: 1-4093
Number of Multicast Groups: 256
MAC Table: 8K
Packet Buffer: 2Mbit
Packet Forwarding Rate: 0.9Mpps
Switching Delay:<5μs
Interface Fast Ethernet Port:
10/100Base-T(X) or 100Base-FX port, 2 connectors with 2×6 pins (J6,J7)
10/100Base-T(X) port, 1 connector with 2×16 pins (J5)
Console Port:
RS232(TXD,RXD), 1 connector with 2×16 pins (J5)
LED Indicators in the connector with 2×16 pins (J5)
Running LED: Run
Ring Alarm LED:Alarm1,Alarm2
Interface LED: Link/ACT,Speed
Reset System reset, 1 connector with 2×16 pins (J5)
Power Requirements Power Input: 3.3VDC(3.15-3.45VDC)
Power Terminal: 1 connector with 2×16 pins (J5)
Power Consumption:<10W
Physical Characteristics Dimensions:
Weight: 50g
Mounting: Embedded mounting
Environmental Limits Operating Temperature: -40°C to + 85°C
Storage Temperature: -40°C to + 85°C
Ambient Relative Humidity: 5-95% (non-condensing)
Quality Assurance MTBF: 469,065 hrs
Warranty: 5 years

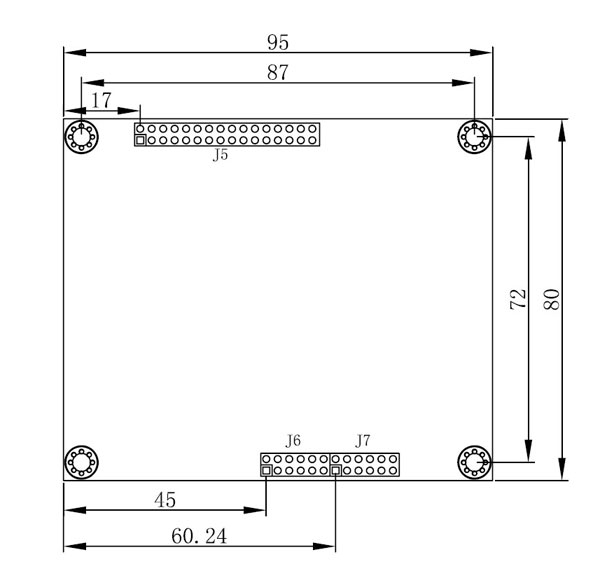

Mechanical Drawing

Ordering Information
SICOM3006-EM: 2×10/100Base-T(X) ports, 4×10/100Base-T(X) or 100Base-FX ports, 3.15-3.45VDC redundant power inputs
