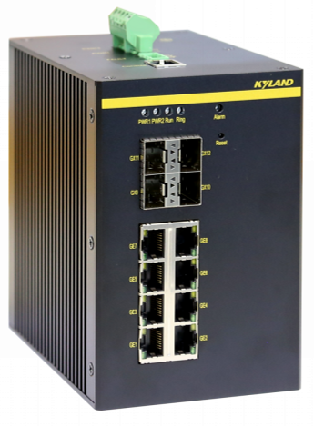

SICOM6800-D
12G port layer 3 managed DIN-Rail switches
Product Overview
SICOM6800-D is Layer 3 DIN-Rail Managed Industrial Ethernet Switch. It provides 4 100/1000Base-X SFP ports,8 10/100/1000Base-T(X) RJ45 ports. SICOM6800-D supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), MSTP/RSTP/STP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports VRRP, OSPF, RIP, IGMP, PIM, static routing and many other Layer 3 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. SICOM6800-D is especially designed for harsh environments with wide operating temperature range, EMC level 4, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Transportation, Oil & gas and many other industrial applications.
Key Features

Supports 1000Base-X SFP ports
Supports DT-Ring, DRP/DHP, STP/RSTP/MSTP
Supports VRRP, OSPF, RIP, IGMP, PIM, static routing
Supports HTTPS/SSL, SSH, TACACS+, IEEE802.1X, RADIUS
Supports DDM(SFP port)
Supports IP40 protection

Specifications
Software Functions
Switching Supports VLAN,PVLAN
Supports port trunking
Supports port flow control
Supports speed limit
Supports broadcast storm control
Redundancy Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms
Supports DRP/DHP, with the recovery time<20ms
Supports STP/RSTP/MSTP
Multicast Supports IGMP Snooping
Supports GMRP
Supports static multicast
Routing Supports VRRP
Supports RIPv1/v2
Supports OSPFv2
Supports static routing
Supports IGMP
Supports PIM-SM, PIM-DM
Network Security Supports IEEE802.1X
Supports HTTPs/SSL
Supports SSH
Supports SFTP Client
Supports RADIUS
Supports TACACS+
Supports User Classification
Supports MAC address binding with switch ports
Service Quality Supports 802.1p, TOS/DiffServ
Supports SP, WRR queue scheduling
Supports ACL
Management and Maintenance Supports Console,Telnet,WEB management methods
Supports SNMPv1/v2c/v3,Kyvison centralized management
Supports software upgrade by FTP/TFTP
Supports IP/MAC conflict alarm, power supply alarm, port alarm, ring alarm
Supports DDM (SFP port)
Supports RMON
Supports port mirroring
Supports Syslog
Supports LLDP
IP Management Supports DHCP server/client
Clock Management Supports SNTP Client
Supports PTPv2
Product Specitifications
Technical Parameter Standard
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T and 100Base-FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3ad (Link aggregation)
IEEE 802.3x (Flow Control)
IEEE 802.1p (Class of Service)
IEEE 802.1Q (VLAN)
IEEE 802.1d (STP)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
IEEE 802.1x (Network Access Control)
IEEE 802.1ab (LLDP)
Switch Properties Priority Queues 8
Number of VLANs 4K
VLAN ID 1-4093
Number of Multicast Groups 1K
Routing Table 8K
MAC Table 32K
Packet Buffer 32Mbit
Packet Forwarding Rate 17.9Mpps(4GX8GE)
Switching Delay <10us
Jumbo Frame Size 10KB
Interface Gigabit Port
100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot
10/100/1000Base-T(X), RJ45 port, Auto MDI/MDI-X connection

Console Port
RJ45, RS232

Alarm Contact
3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max
LED LEDs on Front Panel
Running LED: Run
Alarm LED: Alarm
Power LED: PWR1,PWR2
Ring LED: Ring
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port)
Button Reset: Reboot and restore default configuration
Power Requirement Power Input
100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC)
24-48VDC(18-72VDC)
Power Terminal
5-pin 5.08 mm-spacing plug-in terminal block(L2-L2)
3-pin 7.62 mm-spacing plug-in terminal block(HV)
Power Consumption <18W
Overload Protection Support
Reverse Protection Support
Redundancy Protection Support
Physical Characteristics Housing Metal
Cooling Natural convection, fanless
Protection Class IP40
Dimension 91mm×139mm×140mm (W×H×D)
Weight 1.50Kg
Mounting DIN-Rail or Panel Mounting
Environmental Limit Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Ambient Relative Humidity 5% to 95% (non-condensing)
Warranty MTBF 1118569h
Warranty 5 years
Approvals CE, FCC(Pending)
Industrial Standard EMI
FCC CFR47 Part 15,EN55032/CISPR22,Class A
EMS
IEC61000-4-2(ESD) ±8kV(contact),±15kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port:±4kV; Data Port:±2kV
IEC61000-4-5(Surge) Power Port:±2kV/DM, ±4kV/CM; Data Port:±2kV
IEC61000-4-6(CS) 10V(150kHz~80MHz)
Machinery
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
Mechanical Drawing

Ordering Information

Ordering Information



Product Model

SICOM6800-D-Ports-PS1-PS2

Code definition

Code selection

Ports

4GX8GE= 4×100/1000Base-X, SFP ports; 8×10/100/1000Base-T(X) RJ45 ports

PS1-PS2

HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC), single power input

L2-L2=24-48VDC (18-72VDC), redundant power inputs
