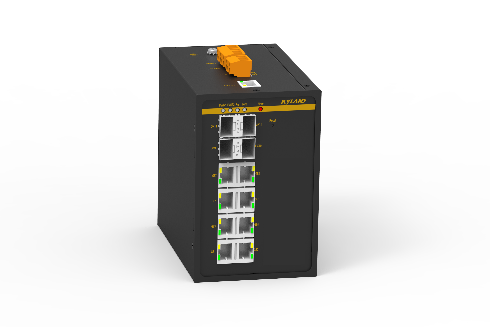

SICOM6000A is Layer 3 DIN-Rail Managed Industrial Ethernet Switch. It provides 4 100Base-X, 1000Base-X SFP ports; 8 10/100/1000Base-T(X) RJ45 ports. SICOM6000A supports DT-Ring (recovery time<50ms), DRP/DHP (recovery time<20ms), MSTP/RSTP/STP, VLAN, multicast, QoS, SSH and many other Layer 2 software features, and supports VRRP, OSPF, RIP, IGMP, PIM, static routing and many other Layer 3 software features, and supports CLI, Telnet, Web management methods, Kyvision centralized management based on SNMPv1/v2c/v3. SICOM6000A is especially designed for harsh environments with wide operating temperature range, EMC level 3, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Transportation, Oil & gas and many other industrial applications.
Supports 100Base-X, 1000Base-X SFP ports
Supports DT-Ring, DRP/DHP, STP/RSTP/MSTP
Supports VRRP, OSPF, RIP, IGMP, PIM, static routing
Supports HTTPS/SSL, SSH, TACACS+, IEEE802.1X, RADIUS
Supports DDM(SFP port)
Supports IP40 protection
| Software functions | |
| Switching | Supports VLAN,PVLAN Supports port trunking Supports port flow control Supports speed limit Supports broadcast storm control |
| Redundancy | Supports DT-Ring, DT-Ring+, DT-VLAN with the recovery time<50ms Supports DRP/DHP, with the recovery time<20ms Supports STP/RSTP/MSTP |
| Multicast | Supports IGMP Snooping Supports GMRP Supports static multicast |
| Routing | Supports VRRP Supports RIPv1/v2 Supports OSPFv2 Supports static routing Supports IGMP Supports PIM-SM, PIM-DM |
| Network Security | Supports IEEE802.1X Supports HTTPs/SSL Supports SSH Supports SFTP Client Supports RADIUS Supports TACACS+ Supports User Classification Supports MAC address binding with switch ports Supports port isolate |
| Service Quality | Supports 802.1p, TOS/DiffServ Supports SP, WRR queue scheduling Supports ACL |
| Management and Maintenance | Supports Console,Telnet,WEB management methods Supports SNMPv1/v2c/v3,Kyvison centralized management Supports software upgrade by FTP/TFTP Supports IP/MAC conflict alarm, power supply alarm, port alarm, ring alarm Supports DDM (SFP port) Supports RMON Supports port mirroring Supports Syslog Supports LLDP |
| IP management | Supports DHCP server/snooping/client, DHCP Option 82 |
| Clock Management | Supports SNTP Client |
| Product Specifications | |
| Technical Parameter | Standard IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-T and 100Base-FX) IEEE 802.3ab (1000Base-T) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3ad (Link aggregation) IEEE 802.3x (Flow Control) IEEE 802.1p (Class of Service) IEEE 802.1Q (VLAN) IEEE 802.1d (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1x (Network Access Control) IEEE 802.1ab (LLDP) |
| Switch Properties | Priority Queues 8 Number of VLANs 4K VLAN ID 1-4093 Number of Multicast Groups 256 Routing Table 3.9K MAC Table 16K Packet Buffer 12Mbit Packet Forwarding Rate 7.2Mpps(4GX8T) 17.9Mpps(4GX8GE) Switching Delay <10us Jumbo Frame Size 10KB |
| Interface | Gigabit Port 100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP slot 10/100/1000Base-T(X), RJ45 port, Auto MDI/MDI-X connection Fast Ethernet Port 10/100Base-T(X), RJ45 port, Auto MDI/MDI-X connection Console Port RJ45, RS232 Alarm Contact 3-pin 5.08mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max |
| LED | LEDs on Front Panel Running LED: Run Alarm LED: Alarm Power LED: PWR1,PWR2 Ring LED: Ring Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(Fiber port) |
| Button | Reset: Reboot and restore default configuration |
| Power Requirement | Power Input 24-48VDC(18-72VDC) Power Terminal 5-pin 5.08 mm-spacing plug-in terminal block Power Consumption <18W (4GX8GE), <14W (4GX8T) Overload Protection Support Reverse Protection Support Redundancy Protection Support |

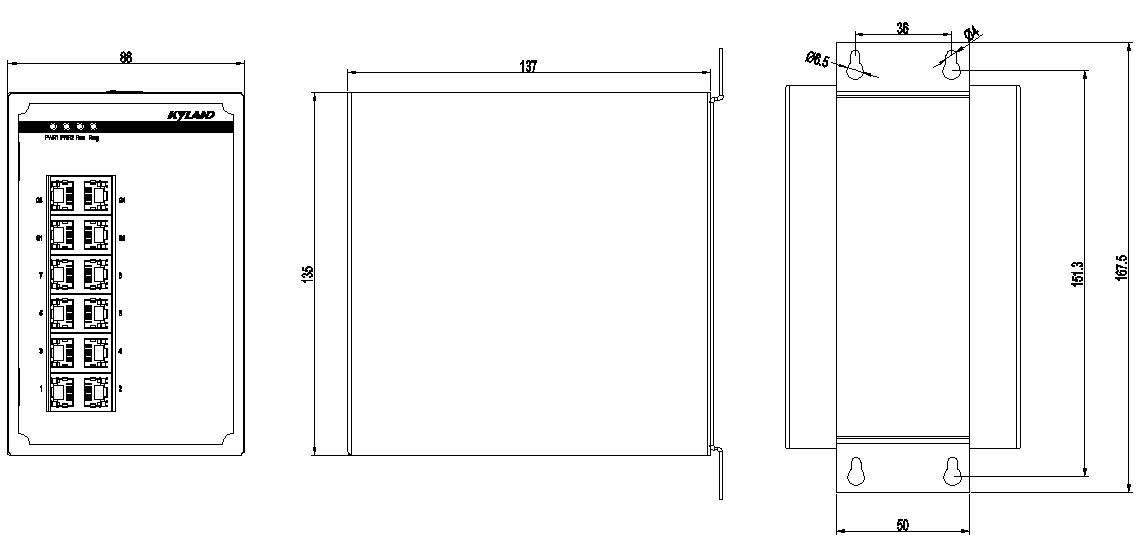

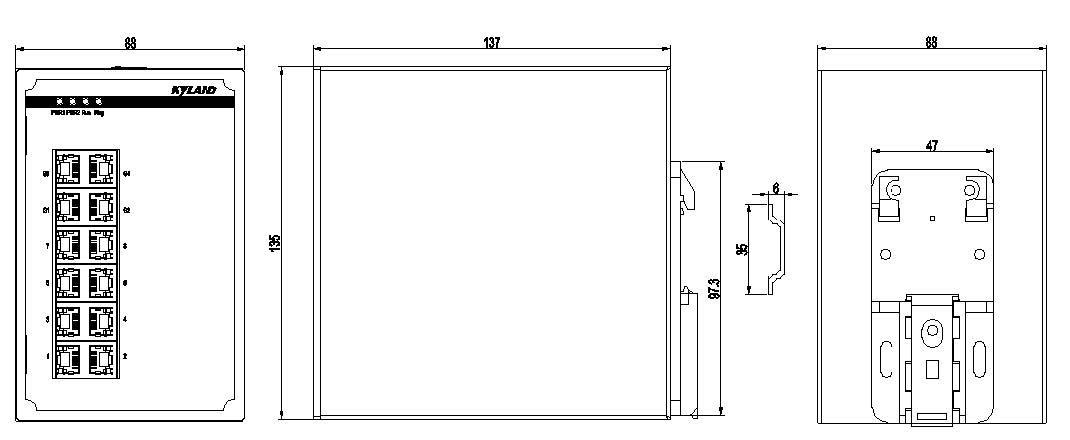

| Physical Characteristics | Housing Metal Cooling Natural convection, fanless Protection Class IP40 Dimension 88mm×135mm×137mm (W×H×D) Weight 1.50Kg Mounting DIN-Rail or Panel Mounting |
| Environmental Limit | Operating Temperature -40℃～+70℃ Storage Temperature -40℃～+85℃ Ambient Relative Humidity 5% to 95% (non-condensing) |
| Warranty | MTBF 1009661h Warranty 5 years |
| Approvals | CE, FCC EMC: EN 55032/35, EN 61000-6-4, EN 61000-6-2 |
| Industrial Standard | EMI FCC CFR47 Part 15,EN55032/CISPR22,Class A EMS IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-4(EFT) Power Port:±4kV; Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM, ±4kV/CM; Data Port:±2kV IEC61000-4-6(CS) 10V(150kHz～80MHz) Machinery IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |
Ordering Information
|
Product Model |
SICOM6000A-Ports-PS1-PS2 |
|
Code definition |
Code selection |
|
Ports |
4GX8T= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100Base-T(X) RJ45 ports 2GX8T= 2×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100Base-T(X) RJ45 ports 8T= 8×10/100Base-T(X) RJ45 ports 4GX8GE= 4×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100/1000Base-T(X) RJ45 ports 2GX8GE= 2×100Base-X, 1000Base-X, 10/100/1000Base-T(X) SFP ports; 8×10/100/1000Base-T(X) RJ45 ports 8GE= 8×10/100/1000Base-T(X) RJ45 ports |
|
PS1-PS2 |
L2-L2=24-48VDC (18-72VDC), redundant power inputs |
Accessories
|
Accessory Model |
Description |
|
SFP module |
See the selection table of industrial SFP module. |
|
DT-BGAZ-02 |
Panel for panel mounting |
|
DT-FCZ-RJ45-01 |
Single-port RJ45 dust plug |
