SICOM3208PT is Kyland Eurocard IEEE1588 industrial Ethernet switch implementing IEEE1588 clock synchronization with hardware time stamping over each of the 2 Gigabit ports and 8 100Base-FX ports. Combining IEEE1588 and SyncE (ITU-T G.8261/G.8262), the synchronization precision accuracy can reach 50 nanoseconds which exceeds all the highest level of requirements for clock synchronization solution in smart grid and power utilities. SICOM3208PT is equipped with DRP ring protocol which enables less than 20ms recovery time. It also supports DT-Ring, STP/RSTP/MSTP. Exceeding IEC61850-3 and IEEE1613 standards, SICOM3208PT is specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and distribution network.
Supports max 2 gigabit ports and 8 fast Ethernet ports
Supports DT-Ring ,DRP, MSTP for network redundancy.
Supports IEEE1588 and ITU-T G.8261/G.8262 synchronous Ethernet, the synchronization precision reaches ±50 ns.
Complies with IEC61850-3 and IEEE1613.
IP40 protection class.
| Software functions | |
| Switching function | Supports VLAN and PVLAN Supports port aggregation Supports flow control Supports broadcast storm suppression |
| Redundancy protocol | Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms Supports DHP and DRP and the recovery time<20 ms Supports STP/RSTP |
| Multicast protocol | Supports IGMP snooping Supports GMRP Supports static multicast |
| Security | Supports HTTPS/SSL Supports SSH Supports RADIUS Supports TACACS+ Supports user grading Supports MAC address binding Supports port isolate |
| Service quality management | Supports ACL Support 802.1p(CoS),DSCP Supports SP and WRR queuing |
| Management and maintenance | Supports Console, Telnet, and Web management methods Supports SNMPv1/v2c/v3 and can managed by Kyvision Supports software update over FTP Supports the IP/MAC address conflict alarm, power failure alarm, temperature alarm, port alarm, and ring alarm Supports port mirroring Supports Syslog Supports LLDP Supports DHCP server/snooping/option 82 Supports up to 10 different IP addresses and VLAN for system management |
| Time synchronization | Supports IEEE1588v2 IEEE 1588v3 support available by upgrade (depends on final standard release) Supports power profile(IEC61850-9-3 2016) Supports RTC |
| Product Specifications | |
| Standard | IEEE 802.3i(10Base-T) IEEE 802.3u(100Base-TX and 100Base-FX) IEEE 802.3ab(1000Base-T) IEEE 802.3ad (port aggregation) IEEE 802.3x(flow control) IEEE 802.1p(priority) IEEE 802.1Q(VLAN) IEEE 802.1w(RSTP) |
| Switch properties | Priority queue：4 Number of VLANs：256 VLAN ID：1～4093 Number of multicast groups：256 MAC table：8K Packet buffer：4Mbit Packet forwarding rate：4.17Mpps Switching delay：<5μs |
| Interface | Gigabit ports： 10/100/1000Base-T(X), RJ45 port Fast Ethernet ports： 100Base-FX, multi mode SFF port(LC connector) Console port：RS232,RJ45 |
| LED | LED on rear panel： Port LED: Link/ACT |
| Power Requirements | Power input：12-24VDC(9-36VDC) Power terminal：3-pin plug-in terminal block Power consumption：< 10 W Overload protection：Support Reverse connection protection：Support |

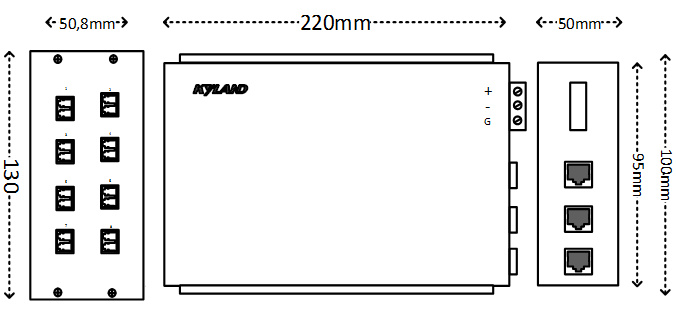

| Physical Characteristics | Housing：Metal Cooling：Natural cooling, fanless Protection Class：IP40 Dimensions (WxHxD)：50.8mm×130mm×220mm (2×5.12×8.66 in.) Weight：<1.5kg(3.3pound) Mounting：Eurocard chassis |
| Environmental limits | Operating temperature：-40°C to +85°C (-40°F to 185°F) Storage temperature：-40°C to +85°C (-40°F to 185°F) Ambient Relative Humidity：5% to 100% (non-condensing) |
| Quality assurance | MTBF：345000h Warranty：5 years |
| Approvals | Please visit www.kyland.com for the latest news |
| Industry standard | EMI：FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS： IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz-2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) IEC61000-4-8(power frequency magnetic field) 100A/m(cont.),1000A/m(1s-3s) IEC61000-4-9(pulsed magnetic field) 1000A/m IEC61000-4-10(damped oscillation) 100A/m IEC61000-4-12(oscillatory wave) 2.5kV/CM,1kV/DM IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s) Machinery： IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) |
|
Product Model |
SICOM3208PT-Ports-PS |
|
Code definition |
Code selection |
|
Ports: |
2GE8SFF=2x1000Base-T; 8x100Base-FX SFF port |
|
PS:power input |
L5=12-24VDC(9-36VDC) |
