SFP-1G to FX

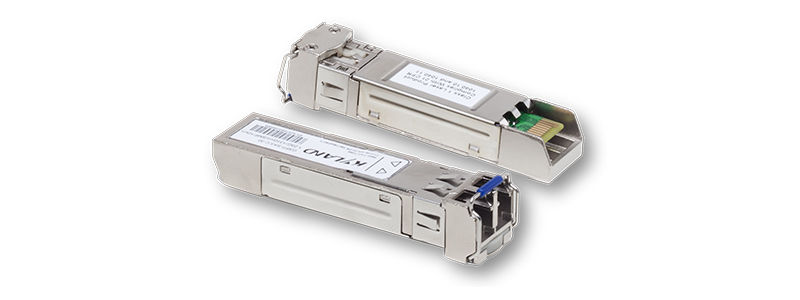

Industrial Gigabit to 100M SFP Optical Transceiver Module

Product Overview

Key Features

Transmission rate is 125Mb/s
Working voltage is 3.3V
Hot-Pluggable
Duplex LC connector
RoHS Compliant

Specifications

Product Specifications
	Standard	SFP MSA(INF-8074i), SFF-8472, IEEE 802.3ah
	Interface	LC Connector
	Physical Characteristics	Dimensions 13.7mm×12.7mm×57.2mm (0.54 in×0.50 in×2.25 in) (W×H×D) Weight 40g (0.088 lb)
	Environmental Limits	Operating Temperature -40 to 85℃ (-40 to 185°F) Storage Temperature -40 to 85℃ (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing)
	Quality Assurance	Warranty period 3 years
	Industrial Standards	EMI FCC Part 15 Class B EN55022/CISPR22,Class B EMS IEC61000-4-2 IEC61000-4-3 EN(IEC)60825-1,2
	Approvals	RoHS

Product Specifications

Standard

SFP MSA(INF-8074i), SFF-8472, IEEE 802.3ah

Interface

LC Connector

Physical Characteristics

Dimensions
13.7mm×12.7mm×57.2mm (0.54 in×0.50 in×2.25 in) (W×H×D)
Weight
40g (0.088 lb)

Environmental Limits

Operating Temperature -40 to 85℃ (-40 to 185°F)
Storage Temperature -40 to 85℃ (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)

Quality Assurance

Warranty period
3 years

Industrial Standards

EMI
FCC Part 15 Class B
EN55022/CISPR22,Class B
EMS
IEC61000-4-2
IEC61000-4-3
EN(IEC)60825-1,2

Approvals

RoHS

Mechanical Drawing

Ordering Information

Ordering

1000Base-X to 100Base-FX SFP (125Mbit/s) Parameter Table

Property		LX
Type		Single Mode(S)
Center Wavelength(nm)		1310
Transmission Distance(km)		10
Application Range of Transmission Distance(km)		0~10
Coupled Fiber		10/125μm SMF
Average Optical Output Power	Min.(dBm)	-15
Average Optical Output Power	Max.(dBm)	-8
Receiver Sensitivity (dBm)		-28
Maximum Input Power (dBm)		-8
