PTS-10A is a multifunction time server designed for 1U 19-inch rack mounting. It provides nanosecond-level accurate time services for various industry fields.
PTS-10A supports GPS (Global Positioning System), BDS (BeiDou Satellite Navigation System), and GLONASS (Global Navigation Satellite System) as sky time sources, and PTP (Precision Time Protocol) and IRIG-B as ground time sources. Based on multiple time source inputs, PTS-10A integrates multi-time-source selection logic and a sky-ground time backup mechanism to ensure reliable time synchronization.
PTS-10A supports PTP (Precision Time Protocol), NTP (Network Time Protocol), IRIG-B, 1PPS, 1PPM, 1PPH, and TOD time synchronization signal outputs. In addition, it supports HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol) to ensure seamless network redundancy and high availability in mission-critical networks, especially in power system communication architectures.
PTS-10A also supports TMS (Time Management System) functions to report the time status via IEC 61850, IEC 60870-5-104, SNMP, Modbus TCP, and DNP over TCP. It can generate accurate GOOSE signals to trigger events for monitoring IED time status in power systems, and provides GOOSE subscriber capability to transmit time status through IEC 61850 MMS.
PTS-10A has been widely deployed in power systems, industrial automation, healthcare, and other industries.
| Product Specifications | |
| Satellite Receiver and Antenna | Receiving Sensitivity of Receiver Locking Sensitivity<-160dBm Tracking Sensitivity<-167dBm Locking Time <0.5min (Warm Boot), <10min (Cold Boot) Time Accuracy of Receiver Better than 20ns (1pps, relative to UTC) Receiving Antenna Sensitivity ≤-163dBm |
| Time Accuracy | 1PPS Fiber≤60ns TTL≤60ns Differential level≤0.5µs Contact≤3µs IRIG-B Fiber≤60ns TTL≤60ns AC ≤20µs Differential level≤0.5µs Serial Data RS232≤5ms RS485≤5ms(RS485 customizable) NTP ≤50µs PTP ≤50ns |
| Frequency | GPS: L1 1575.42MHZ+1.023MHZ BDS: B1 1559.052MHZ - 1591.788MHZ |

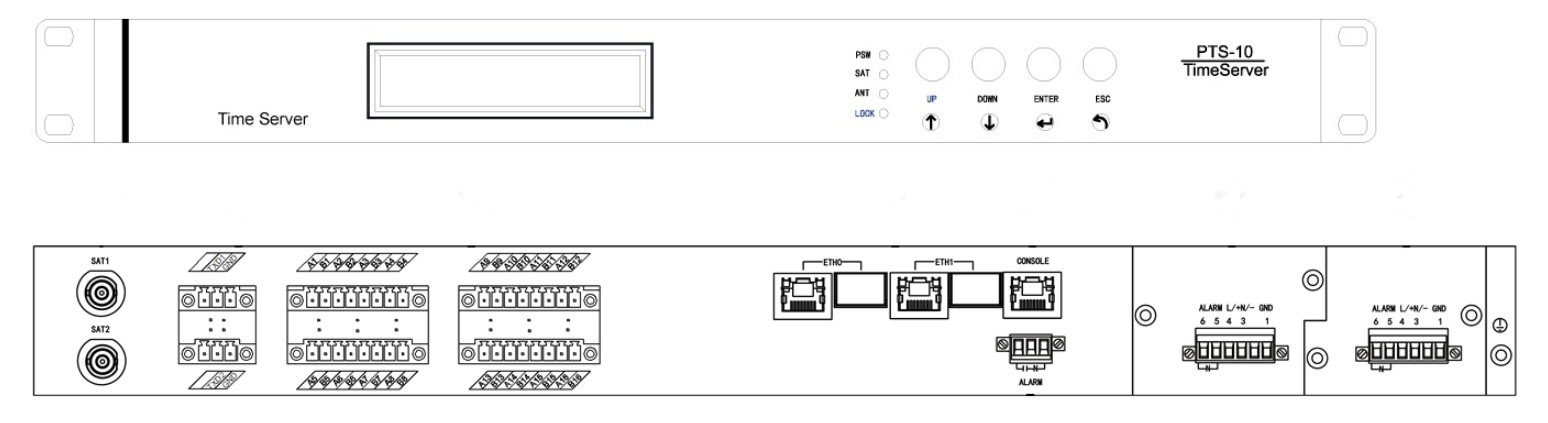

| LED | PSW ON: Power ON; OFF: Power OFF SAT ON: Satellite number≥4; OFF: Satellite number<4 ANT ON: Antenna status is normal; OFF: Antenna status is abnormal LOCK Flash per second: Clock is locked Flash per 3 seconds: Clock is hold OFF: Clock is unlocked |
| Key | UP Move the cursor up DOWN Move the cursor down ENTER Confirm operation ESC Cancel operation |
| Holdover Accuracy | TCXO 55μs per hour OCXO 6μs per 24h |
| Input Interface | Satellite SAT1: BNC connector (5VDC) SAT2: BNC connector (5VDC) Fiber FI1: ST-850nm MM (IRIG-B-DC) FI2: SMA connector FO1+FO2: ST 850nm MM |
| Network Interface | Non HSR/PRP function ethernet 2 x 10/100/1000Base-T(X) Combo ports + 2 x 10/100Base-TX RJ45 ports 1 x 10/100/1000Base-T(X) Combo ports + 1 pair 10/100/1000Base-T RJ45 HSR/PRP A & B port + 2 x 10/100Base-TX RJ45 ports |
| Output Interface | Type 1 4 BNC ports for IRIG-B (AC), 6 BNC ports for TTL PPS/IRIG-B (DC), 2 DB9 ports for RS232 TOD Type 2 10 BNC ports for TTL PPS/IRIG-B (DC), 2 DB9 ports for RS232 TOD |
| Power Supply | Power Input 110-220VAC/DC(85-264VAC/85-300VDC),47-63Hz Single/Dual power input(s) Power Terminal 5-pin 5.08 mm-spacing plug-in terminal block Power Alarm Support Status Alarm Support |
| Physical Characteristics | Housing Metal Cooling Natural cooling, fanless Protection Class IP40 Dimensions(WxHxD) 483 ╳ 45 ╳ 280mm Weight 4.5kg Mounting 1U 19 inch rack mounting |
| Environmental Limits | Operating temperature -20℃ to +70℃ Storage temperature -30℃ to +80℃ Ambient Relative Humidity 5% to 95% (non-condensing) |
| Quality Assurance | MTBF 50000hrs Warranty 5 years |
| Approvals | CE |
| Standard | DL/T 1100.1-2018 IEC 60068-2-78 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-8 IEC 61000-4-9 IEC 61000-4-10 IEC 61000-4-12 |

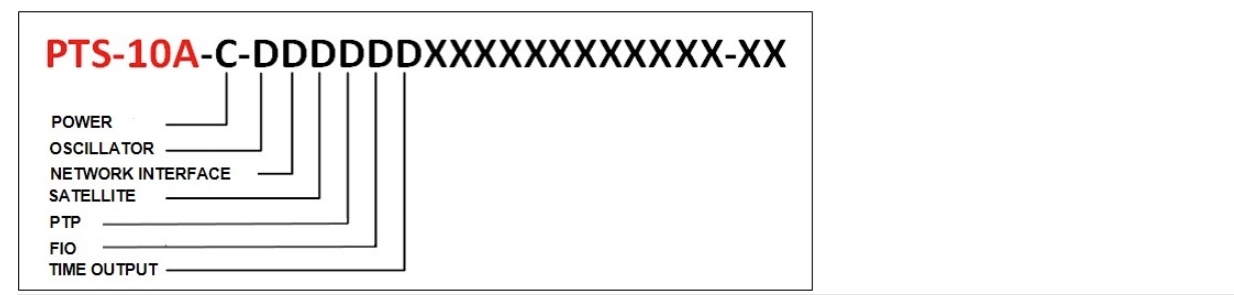

| POWER | |
| 1 | 110-220VAC/DC Single |
| 2 | 110-220VAC/DC Dual |
| OSCILLATOR | |
| 1 | TCXO (<55µs/1h) |
| 3 | OCXO (<6µs/24h) |
| NETWORK INTERFACE | |
| 7 | 2 ╳ 10/100/1000Base-T(X) Combo RJ45/Fiber ports+ 2╳10/100Base-TX RJ45 ports |
| 8 | 1 ╳ 10/100/1000Base-T(X) Combo RJ45/Fiber ports + 1 pair 10/100/1000Base-T RJ45 HSR/PRP A & B ports+ 2╳10/100Base-TX RJ45 ports |
| SATELLITE | |
| 2 | GPS/BDS (Dual-Mode) |
| 5 | GPS+BDS (Dual-channel) |
| 6 | GPS+GLONASS (Dual-channel) |
| PTP | |
| 1 | PTPv2 (ETH0/ETH1) |
| FIO | |
| 0 | N/A |
| 1 | FI1 (ST 850nm MM) + FI2 (SMA) + FO1 (ST 850nm MM) + FO2 (ST 850nm MM) |
| TIME OUTPUT | |
| 0 | 4 BNC ports for IRIG-B (AC), 6 BNC ports for TTL PPS/IRIG-B (DC), 2 DB9 ports for RS232 TOD |
| 1 | 10 BNC ports for TTL PPS/IRIG-B (DC), 2 DB9 ports for RS232 TOD |
SOFTWARE
| PTS-10A-S11 | WEB + SNMP（Default） |
ANTENNA
| PTS-ANT-GPS-BDS-TNC | GPS/BDS, TNC Female Connector |
| PTS-ANT-GPS-BDS-N | GPS/BDS, N Female Connector |
| PTS-ANT-GPS-BDS-GLN_TNC | GPS/BDS/GLONASS, TNC Female Connector |
| PTS-ANT-GPS-BDS-GLN_N | GPS/BDS/GLONASS, N Female Connector |
| PTS-ANT-CABLE-15 | Coaxial Cable (15 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-30 | Coaxial Cable (30 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-50 | Coaxial Cable (50 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-80 | Coaxial Cable (80 meters) (N Male to BNC Male Connector) |
| PTS-ANT-CABLE-100 | Coaxial Cable (100 meters) (N Male to BNC Male Connector) |
| PTS-ANT-AMPLIFIER | Antenna Amplifier (BNC Female to Male Connector) (Needed when the antenna cable length exceeds 100 meters) |
| PTS-ANT-LIGHTING | Lighting Arrester (BNC Female to Male Connector) |
| PTS-ANT-BNC-J/BNC-K-30cm | Lightning protection device feeder 30 centimeters |
| PTS-ANT-MOUNT-BASE | Base Mount accessory for antenna |
| PTS-ANT-MOUNT-HOOP | Hoop Mount accessory for antenna |
| MODEL | POWER | OSCILLATOR |
Support NTP/SNTP PTP optional |
Network Interface Support HSR/PRP |
SATELLITE | PTPv2 | FIO | TIME OUTPUT |
SOFTWARE PTS-10A-S11 WEB+SNMP |
| PTS-10A-2-175100XXXXXXXXXXXX-XX | Dual | TCXO | √ |
GPS+BDS Dual-channel |
√ | N/A | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ | |
| PTS-10A-2-175110XXXXXXXXXXXX-XX | Dual | TCXO | √ |
GPS+BDS Dual-channel |
√ | FI1(ST 850nm MM)+FI2(SMA)+FO1(ST 850nm MM)+FO2(ST 850nm MM) | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ | |
| PTS-10A-2-175111XXXXXXXXXXXX-XX | Dual | TCXO | √ |
GPS+BDS Dual-channel |
√ | FI1(ST 850nm MM)+FI2(SMA)+FO1(ST 850nm MM)+FO2(ST 850nm MM) | 10 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ | |
| PTS-10A-2-375110XXXXXXXXXXXX-XX | Dual | OCXO | √ |
GPS+BDS Dual-channel |
√ | FI1(ST 850nm MM)+FI2(SMA)+FO1(ST 850nm MM)+FO2(ST 850nm MM) | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ | |
| PTS-10A-2-176110XXXXXXXXXXXX-XX | Dual | TCXO | √ |
GPS+GLN Dual-channel |
√ | FI1(ST 850nm MM)+FI2(SMA)+FO1(ST 850nm MM)+FO2(ST 850nm MM) | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ | |
| PTS-10A-1-172100XXXXXXXXXXXX-XX | Single | TCXO | √ |
GPS/BDS Dual-Mode |
√ | N/A | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD |
√ |
|
| PTS-10A-2-382100XXXXXXXXXXXX-XX | Dual | OCXO | √ | √ |
GPS/BDS Dual-Mode |
√ | FI1(ST 850nm MM)+FI2(SMA)+FO1(ST 850nm MM)+FO2(ST 850nm MM) | 4 BNC ports for IRIG-B(AC),6 BNC ports for TTL PPS/IRIG-B(DC),2 DB9 ports for RS232 TOD | √ |
