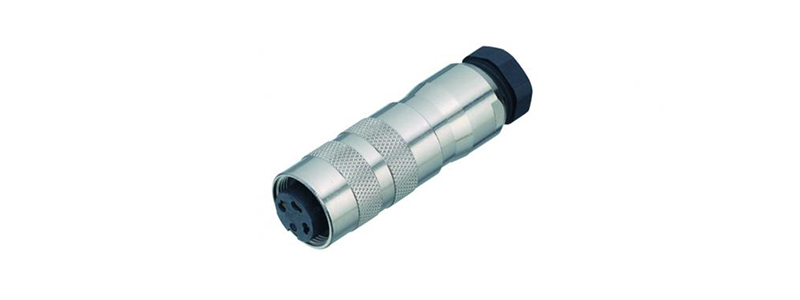

Product ImageProduct OverviewKey FeaturesSpecificationsMechanical DrawingOrdering InformationDownload
M16 A-Coding 5 Pin Female Screw Clamp Connection Cable Connector
Product Overview
Key Features
Product Specifications
Electrical Specification Rated voltage: 250 V
Rated impulse voltage: 1500 V
Rated current (40 °C): 6 A
Contact resistance: <= 5 mΩ
Physical Characteristics Protection class: IP67
Connector locking system: Screw-locking
Connector Type: A-Coding, 5 Pin, female
Contact plating: Ag (silver)
Cable Outlet: 6-8 mm
Shielding Ring: Support
Mechanical Operation: > 500 mating cycles
Environmental Limits Operating Temperature: -40°C to +85°C (-40°F to 185°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Ambient Relative Humidity: 5-95% (non-condensing)
Quality Assurance Warranty period: 3 years

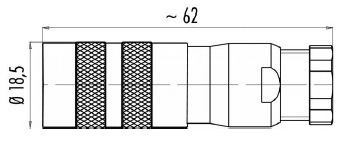

Mechanical Drawing

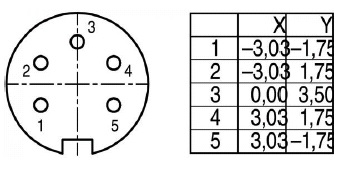

Contact Arrangement

Ordering Information

M16-A-5P-F:  Female cable connector with M16, A-Coding, 5 Pin
