Product Overview

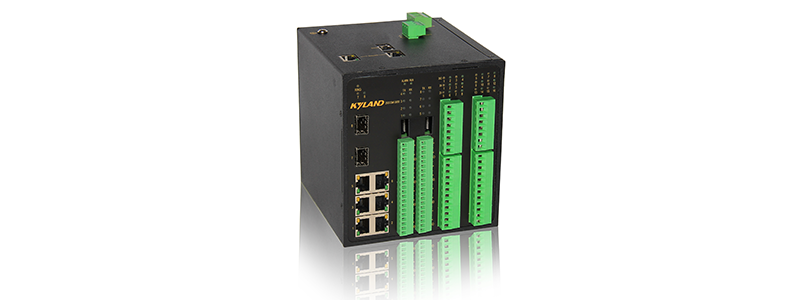

DGCOM3000  is Kyland’s latest generation of intelligent gateway and switch All-in-One devices which are specially designed to meet the demand of data collecting and switching under harsh environment.
The Din Rail devices support maximum 2 1000M/100M SFP fiber ports for the redundant ring connection and 6 100Base-TX RJ45 ports. They support up to 8 RS232/422/485 serial ports and 16 DI and 8 DO ports.
DGCOM3000 series support multiple data switching function including network redundancy, multicast, security, QoS, device status monitoring and maintenance, time synchronization, DGCOM3000  support multiple protocols, data collecting/processing/ forwarding, digital calculation and IEC61850 MMS/GOOSE service.
DGCOM3000 series support NTP/SNTP.DGCOM3000 can be deployed in multiple applications such as the distributed PV power plant automation system, wind farm management system, micro network system, integrated energy-saving system, and automation systems.

Key Features
Supports 1000M/100M SFP ports, 100M copper ports
Supports Layer 2 switching, redundant ring protocol (DRP,STP/RSTP,DT-Ring), multicast, QoS service
Supports broadcast storm control
Supports RS232/422/485 serial ports
Supports DI/DO input & output, SOE reaches 1ms
Supports IEC61850 MMS server or client application
Supports IEC61850 GOOSE publishing and subscribing
Supports advanced online calculation function
Supports real-time online communication diagnostics and maintenance of acquisition/forward protocol communication
Supports NTP/SNTP
Configurable hardware watchdog
Software Functions
Gateway Functions IEC 61850 MMS Server/Client
IEC 61850 GOOSE Subscriber/Publisher
DNP 3.0/DNP 3.0 Over TCP/IP Master/Slave
Modbus RTU /Modbus over TCP/IP Master/Slave
IEC 60870-5-101 Master/Slave
IEC 60870-5-104 Master/Slave
Advanced online calculation of digital logic
NTP/SNTP network time synchronization
Third party software development interface
Maintenance tool
Switching Functions Supports VLAN,PVLAN
Supports GVRP
Supports port aggregation.
Supports flow control.
Supports port rate limit
Supports broadcast storm suppression.
Redundancy Supports DRP and the recovery time<20 ms
Supports STP/RSTP
Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms
Multicast Supports IGMP snooping
Supports static multicast
Security Supports user grading
QoS Management Supports ACL
Supports SP, WRR queueing
Management & Maintenance Supports Console, Telnet, and Web management methods.
Supports SNMPv1/v2c/v3 and can managed by Kyvision.
Supports file transfer and software update over HTTP.
Supports the IP/MAC address conflict alarm, power alarm, port alarm, ring alarm
Supports port mirroring.
Supports Syslog.
Supports LLDP.
Supports Link-check.
Technical Specifications
Standards IEEE 802.3i(10Base-T)
IEEE 802.3u(100Base-T)
IEEE 802.3ab(1000Base-T)
IEEE 802.3ad(port aggregation)
IEEE 802.3z(1000Base-SX/LX)
IEEE 802.3x(flow control)
IEEE 802.1p(priority)
IEEE 802.1w(RSTP)
IEEE 802.1s(MSTP)
Switch properties Priority Queue: 8
VLAN ID: 1-4093
Multicast: 256
MAC Table: 8K
Packet buffers: 4Mbit
Packet forwarding rate: 3.8Mpps
Switching capacity: 5.2Gbps
Switching latency:<10us
Interface Optical ports: 1000Base-X or 100Base-FX, SFP ports
Copper ports: 10/100Base-T(X), RJ45 port
Serial ports: RS232/422/485, 3.81mm space plug-in terminal
DI ports: Idle contact, 5.08mm space plug-in terminal, supports 24V/48V DC or 110V/220VDC contact power inputs
DO ports: Relay control contact, 5.08mm space plug-in terminal, 250VAC Max,3A Max
Alarm contact: NC and NO relay alarm contact, 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC Max, 3 A Max
Console port: RS232, RJ45
LED LED on front panel
Ring Role LED: RING
Interface LED: Link
Serial LED: Tx/ Rx
DI status LED: On/Off
DO status LED: Open/Close
Power Requirements Power input: 110-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC)
Power terminal: 3-pin 7.62 mm-spacing plug-in terminal block
Power Consumption: < 25 W
Overload Protection: Support
Reverse Connection Protection: Support
Physical Characteristics Housing: Metal
Cooling: Natural cooling, fanless
Protection Class: IP40
Dimension (W×H×D): 140mm×139mm×145mm
Weight: 3.5Kg
Mounting: Din Rail
Environment Limits Operating temperature: -40 to+85℃
Storage temperature: -40 to +85℃
Ambient Relative Humidity: 5% to 95% (non-condensing)
Quality Assurance MTBF: 350877h
Warranty: 5 years
Approvals CE, FCC
IEC 60950-1, EN 60950-1
Industry Standards EMI
FCC CFR47 Part 15, EN55022/CISPR22, Class A

IEC61000-4-2(ESD) ±8kV(contact),±15kV(air)
IEC61000-4-3(RS) 10V/m(80MHz-1GHz)
IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV
IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS) 10V(9kHz-50kHz)
IEC61000-4-8(power frequency magnetic field) 100A/m(cont.),1000A/m(1s-3s)
IEC61000-4-9(pulsed magnetic field) 1000A/m
IEC61000-4-10(damped oscillation) 100A/m
IEC61000-4-12(oscillatory wave) 2kV/CM,1kV/DM
IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s)

IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
Mechanical Drawing

Ordering Information
2GX6T4D 2*1000Base-X,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485
2GX6T8D 2*1000Base-X,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485
2GX6T4D8DI4DO 2*1000Base-X,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485;  8*DI;4*DO
2GX6T8D8DI4DO 2*1000Base-X,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485;  8*DI;4*DO
2GX6T4D16DI8DO 2*1000Base-X,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485;  16*DI;8*DO
2GX6T8D16DI8DO 2*1000Base-X,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485;  16*DI;8*DO
2SFP6T4D 2*100Base-FX,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485
2SFP6T8D 2*100Base-FX,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485
2SFP6T4D8DI4DO 2*100Base-FX,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485;8*DI;4*DO
2SFP6T8D8DI4DO 2*100Base-FX,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485;8*DI;4*DO
2SFP6T4D16DI8DO 2*100Base-FX,SFP;6*10/100Base-T(X);4*RS232/RS422/RS485;16*DI;8*DO
2SFP6T8D16DI8DO 2*100Base-FX,SFP;6*10/100Base-T(X);8*RS232/RS422/RS485;16*DI;8*DO
WS DI Contact Voltage
W1 24VDC
W2 48VDC
W3 110VDC
W4 220VDC
NA: No DI interface
ES Extended Storage
E1 2G extended storage
NA: No extended storage
PS Power Supply
HV 110-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC)
L2 24-48VDC(18-72VDC)
SW Firmware
A1 Serial server
A3 IEC 101, IEC 104, DNP 3.0, Modbus Master/Slave
A4 IEC 101, IEC 104, DNP 3.0, Modbus Master/Slave, MMS Server
A5 IEC 101, IEC 104, DNP 3.0, Modbus Master/Slave, MMS Client
A6 IEC 101, IEC 104, DNP 3.0, Modbus Master/Slave, MMS Server/Client
Gigabit SFP module See the selection table of industrial gigabit SFP module
100M SFP module  See the selection table of industrial 100M SFP module.
CONSOLE cable Standard accessory
