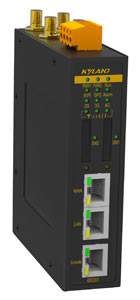

The KR2201 series industrial level 7-mode 4G routers, based on MIPS 400MHz processor, and featured with built-in 512M DDR2 SDRAM and 128MB Flash support 7-mode 4G wireless communication to meet the demand of high speed communication of field devices.
The KR2201 industrial 4G routers are equipped with a 10/100Mbps adaptive WAN, a 10/100Mbps adaptive LAN, a Console port, and a DI/DO port. They also support IEEE802.11 b/g/n and GNSS selections. The 4G module of KR2201 series supports 7 communication modes, including WCDMA, EVDO, TD-SCDMA, HSPA+, TDD LTE, and FDD LTE, as well as compatibility with both CDMA1x and EDGE/GPRS. The upstream speed and downstream speed of the KR2201 can reach 50Mbps and 100Mbps respectively, and the transmission rate of WLAN can reach 300Mbps. The KR2201 series also provides dual SIM cards and dual redundant power inputs. The features of strict EMS protection and wide operation temperature range ensure the operating stability in severe environments.
Support LTE/WCDMA(HSPA+)/EDGE/GPRS/GSM
Built-in a 10/100Mbps adaptive WAN and a 10/100Mbps adaptive LAN
One RS-232/RS-422/RS-485 port and DI/DO port
Support dual power inputs and dual SIM cards
Support IEEE802.11 b/g/n and GNSS selection
IP30 protection level
| Software functions | |
| Network Interface | Supporting APN, VPDN access Supporting CHAP/PAP/MS-CHAP/MS-CHAPV2 access authentication Supporting LTE/WCDMA(HSPA+)/EDGE/GPRS/GSM LAN: ARP, Ethernet WAN: Static IP, DHCP, PPPoE |
| Network Protocol | Supporting Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP Supporting Static Routing, RIP, OSPF, IGMP Proxy, VRRP |
| Security | Supporting Stateful Packet Inspection (SPI) Supporting filtering multicast/ping package, ACL Supporting NAT, PAT, DMZ, port mapping, virtual server Supporting Local Authentication, Radius Supporting GRE, L2TP, IPSec Supporting PEM, PKCS12, SCEP Supporting Anti-ARP, DMZ, MAC Filtering |
| QoS | Supporting Limiting maximum bandwidth Supporting ICMP/IGMP/TCP/UDP/GRE/ESP/OH/OSPF/VRRP/L2TP |
| WLAN | IEEE802.11 b/g/n Supporting AP, Client, Repeater mode Supporting WPA/WPA2, WPA-PSK, support open system, shared key Supporting WEP, TKIP, AES encryption |
| Management and Maintenance | Supporting Configuration by HTTP, HTTPS, Serial Port, Telnet, SSH Supporting firmware upgrade by WEB, TFTP, FTP, SFTP Supporting log management Supporting Ping, Traceroute, Sniffer Tools |
| Product specifications | |
| Interface | WAN: 1 x 10/100Mbps WAN port, RJ45 connector LAN: 1 x 10/100Mbps LAN port, RJ45 connector Serial Port: 1 x RS232/RS422/RS485, DB9 male Console Port: RS-232, RJ45 Reset Button: Restore Default Setting 3G/4G Antenna: 2 x SMA connector (female) DI: 1 x digital input, galvanic isolation, status "1"：+10～+30V, status "0"：-30～+3V DO: 1 x relay output, 2A@30VDC GNSS (Optional): 1 x SMA connector (female), GPS (1575.42 MHz), GLONASS (1602 MHz) |
| LED | Running LED: Run PWR LED: PWR1, PWR2 Status LED: SIM1, SIM2, WIFI, GPS, 2G, 3G, 4G, LAN. WAN Signal LED: 3 signal LEDs (3 levels of cellular signal strength) |
| Power Supply | Input Voltage: 24VDC (12-48VDC), dual power inputs Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption: <5W Overload Protection: Support Reverse Protection: Support Redundancy protection: Support |

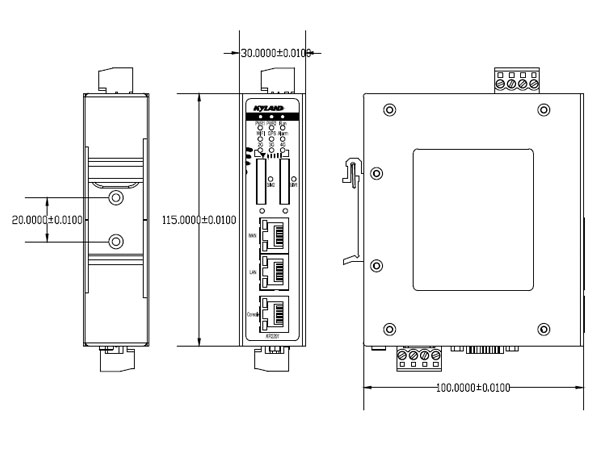

| Physical Characteristics | Housing: Metal Heat-dissipating Method: Natural cooling, fanless Protection Level: IP30 Dimension: 30mm×115mm×91.5mm (W×H×D) Weight: <500g Installation: DIN-rail mounting |
| Environment Limits | Operating temperature: -25℃～+70℃ Storage temperature: -40℃～+85℃ Relative humidity: 5～95% |
| Warranty | 5 years |
| Approvals | CE, FCC |
| Industrial Standard | EMI EN55022 Class A FCC Part 15 EMS IEC61000-4-2 (ESD) : ±8kV (contact),±15kV (air) IEC61000-4-3(RS): 10 V/m (80 MHz to 1 GHz) IEC61000-4-4(EFT) : Power Port: 2kV; Data Port: 1kV IEC61000-4-5(Surge) : Power Port: 1kV; Data Port: 1kV IEC61000-4-6(CS): 10V (150kHz-80MHz) Machinery IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
Recommended model
|
Product model |
KR2201 |
|
Ports: |
1 x 10/100Mbps adaptive LAN, 1 x 10/100Mbps adaptive WAN, 1×RS-232/RS-422/RS-485, 1×Console port |
|
PWR1-PWR2: power supply |
24VDC(12-48VDC), redundant input |
