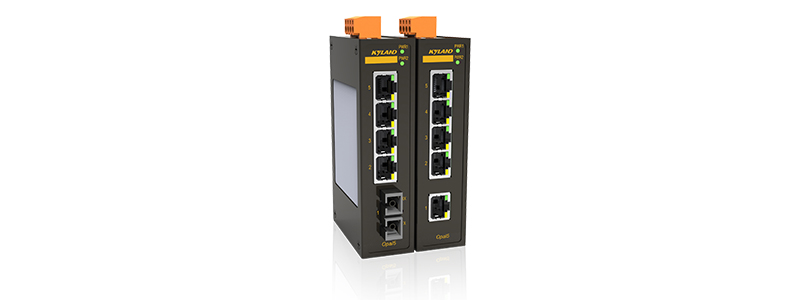

Opal5 unmanaged 5-port switch is specially designed for automation control applications. It is equipped with one fast Ethernet fiber/RJ45 optional port and 4 10/100Base-TX RJ45 ports. Opal5 supports SC/ST/SFP type fiber ports, redundant power inputs, metal housing with IP30 protection class, thus ensuring fast and reliable data transmission in harsh industrial environments. Opal5 provides both standard (-10°C to 60°C) operating temperature range model and wide (-40°C to 75°C) operating temperature range models to meet different applications.
1 Fast Ethernet fiber/RJ45 optional port, 4 10/100Base-T(X) ports
Both standard and wide operating temperature models are available
IP30 protection class
CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc
| Technical Specification | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX and100Base-FX) |
| Switch Properties | MAC Table: 2K Packet Buffer: 1Mbit Packet Forwarding Rate: 0.75Mpps Switching Delay:<10μs |
| Interface | Fast Ethernet Port: 100Base-FX, SM/MM, SC/ST connector 100Base-X, SFP slot 10/100Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT (Fiber port) |
| DIP-Switch | Enable/Disable broadcast storm protection |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption:<3.4w Overload Protection: Support Reverse Protection: Support Redundancy Protection: Support Communication ports isolation: 500 Vdc, 1 minute |

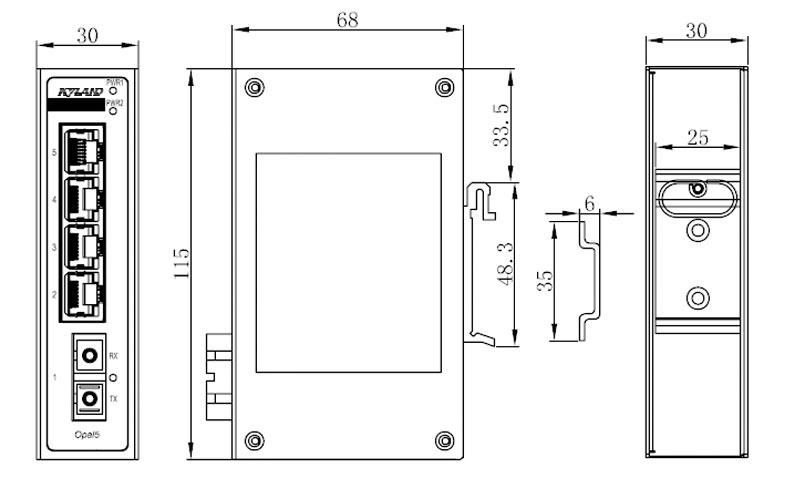

| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP30 Dimension: 30mm×115mm×68mm (W×H×D) Weight: 0.2Kg Mounting: DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -10°C to +60°C (Opal5-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) Operating Altitude：2000M |
| Quality Assurance | MTBF: 5832000 hrs Warranty: 5 years |
| Approvals | CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
| Opal5-X-Ports-Connector-PS | |
| X | Operating temperature range |
| E | -10 to +60°C operating temperature |
| None | -40 to +75°C operating temperature |
| Ports | |
| 5T | 5 10/100Base-T(X) RJ45 ports |
| 1S4T | 1x100Base-FX, single mode fiber port; 4x10/100Base-T(X) RJ45 ports |
| 1M4T | 1x100Base-FX, multi mode fiber port; 4x10/100Base-T(X) RJ45 ports |
| 1SFP4T | 1 100Base-X, SFP slot; 4 10/100Base-T(X) RJ45 ports |
| Connector | 100M fiber port specifications |
| SC05 | SC connector, multi-mode, 1310nm, 5km |
| ST05 | ST connector, multi-mode, 1310nm, 5km |
| SC40 | SC connector, single-mode, 1310nm, 40km |
| ST40 | ST connector, single-mode, 1310nm, 40km |
| SC60 | SC connector, single-mode, 1310nm, 60km |
| SC80 | SC connector, single-mode, 1550nm, 80km |
| None | No 100M fiber port |
| PS | |
| LV-LV | 12-48VDC/18-30VAC, redundant power inputs |
| Accessories | |
| 100Base-X SFP module | Please refer to the 100Base-X SFP module ordering list |
| DT-BGAZ-01 | Panel for Panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
