KIEN1008BA
8 port unmanaged DIN-Rail switches
Product Overview

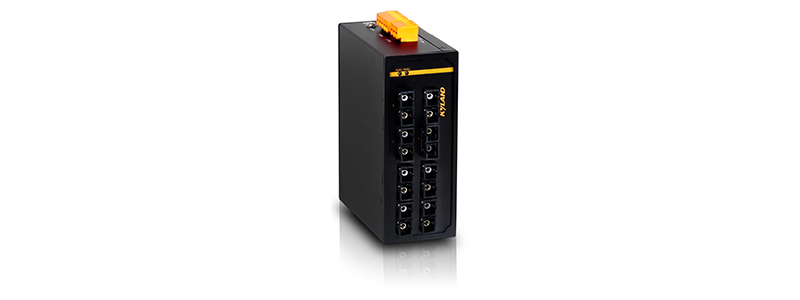

KIEN1008BA is un-managed serial device that comply with explosive atmospheres standard, support 8 fast Ethernet ports, optical and electrical signal is optional. Support remote distance transmitting and forwarding, plug and play, easy for operating, have advanced insulation and damp proofing. Which suitable for use in factory automation, coal mine, high dust conditions, etc.

Key Features

8 fast ethernet ports,optical and electrical inter face is optional,signal-mode and multi-mode is optical.
Comply with explosive atmospheres standard IEC60079-11(GB3836.4).
Dry contact for warning signal,support NO and NC
Support DIN-Rail and non-housing version,DIN-Rail comply with IP40.
CE,FCC, EN60950-1, UL508, UL Class I Div 2

Specifications
Technical Specifications
Standard IEEE 802.3i,
IEEE 802.3u
IEEE802.3x (Flow control)
Switch Properties MAC Table Size: 8K
Packet Buffer Size: 1Mbit
Packet Forwarding Rate: 1.2Mpps
Switching Delay:<10μs
Interface Fast Ethernet Connector:
100Base-FX,single-mode or multi-mode,SC/ST/FC connector is optional
10/100Base-T(X),auto negotiation,RJ45 connector.
Alarming Contactor:
Dry contact,NO and NC.
3X5.08mmspacing plug-in connector;
0.5A at 125Vac,2A at 30Vdc;
LED LED on Front Panel
Run:Running LED
PWR1,PWR2: Power LED
Alarm: Alarming LED
1-6:Fiber ports 1-6 LED
Fast ethernet LED
Green:Link/ACTLED
Yellow:Speed
Non-housing version support LED interface for users.
Power Requirements Input Voltage:
12DC(9-18VDC),Redundancy power
24-48VDC(18-72VDC), Redundancy power
Power Connector:
5x5.08mmspacing plug-in connector
Power Consumption:<5.5w
Overload Protection: support
Reserve Protection: support
Redundancy Protection: support
Physical Characteristics Housing: Metal fanless
IP class: IP40
Dimension:
53.6mm×135mm×106.5mm(W×H×D)
Weight: 0.76Kg
Installation: DIN-Rail or wall-mount
Environmental Limits Operating Temperature: -40°C to +75°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5-95%RH (non-condensing)
Quality Assurance MTBF: 385,000 hrs
Warranty: 5 years
Approvals CE(EMC): Models with 24-48VDC(18-72VDC)
CE(LVD): Models with 24-48VDC(18-72VDC)
FCC: Models with 24-48VDC(18-72VDC)
UL508, Class I Div 2: Models with 24-48VDC(18-72VDC)
Industry Standard EMI:
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS:
IEC61000-4-2(ESD) ±8kV(contact),±15kV(air)
IEC61000-4-3(RS) 10V/m(80MHz–2GHz)
IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV
IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;
Data Port:±2kV
IEC61000-4-6(CS) 3V(10kHz–150kHz);10V(150kHz–80MHz)
Environmental:
IEC60068-2-6(vibration)
IEC60068-2-27(shock)
IEC60068-2-32(free-fall)
General Industrial Standards:
IEC61000-6-2
IEC61000-6-4
Explosive atmosphere standard:
IEC60079-0(GB/T3836.1),
IEC60079-1(GB/T3836.2),
IEC60079-7(GB/T3836.3),
IEC60079-11(GB/T3836.4)

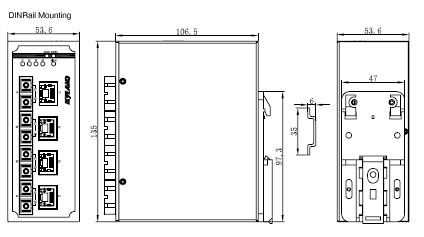

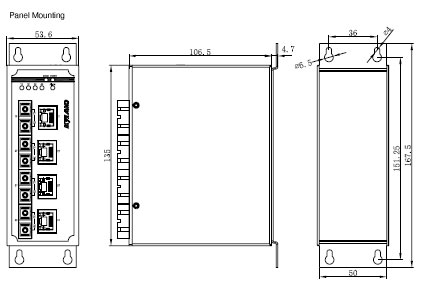

Mechanical Drawing

Ordering Information
KIEN1008BA-EC-Ports-PS1-PS2
KIEN1008BA-C-Ports-PS1-PS2
KIEN1008BA-Ports-PS1-PS2
None Standard
Conformal Coating
EC  Non-housing and confortmal coating
Ports
4S4T 4x100Base-FX, single mode fiber ports; 4x10/100Base-T(X) RJ45 ports
4M4T 4x100Base-FX, multi mode fiber ports; 4x10/100Base-T(X) RJ45 ports
6S2T 6x100Base-FX, single mode fiber ports; 2x10/100Base-T(X) RJ45 ports
6M2T 6x100Base-FX, multi mode fiber ports; 2x10/100Base-T(X) RJ45 ports
8S 8x100Base-FX, single mode fiber ports
8M 8x100Base-FX, multi mode fiber ports
Connector 100M fiber port specifications
SC05  SC connector, multi-mode, 1310nm, 5km
ST05  ST connector, multi-mode, 1310nm, 5km
FC05 FC connector, multi-mode, 1310nm, 5km
SC40  SC connector, single-mode, 1310nm, 40km
ST40  ST connector, single-mode, 1310nm, 40km
FC40 FC connector, single-mode, 1310nm, 40km
SC60  SC connector, single-mode, 1310nm, 60km
SC80  SC connector, single-mode, 1550nm, 80km
PS
L2-L2 24-48VDC(18-72VDC),redundant power
L6-L6 12VDC(9-18VDC),redundant power

Accessories
DT-BGAZ-02 Panel for panel mounting
DT-FCZ-RJ45-01  Dustproof cover for RJ45 port
