SICOM3024G
24 full Gigabit ports Layer 2 managed rack mountable switch
Product Overview

SICOM3024G is a full Gigabit layer 2 managed industrial Ethernet switch designed to operate reliably in climatically demanding utility and industrial environments. SICOM3024G is a 19-inch 1U rack mountable device, supports 12 gigabit combo ports and 12 gigabit copper ports which offers the maximum flexibility. SICOM3024G supports many Layer 2 software features such as port, VLAN, multicast, QoS, fast redundant ring. It supports Console, Telnet, Web management and network management software based on SNMP. At present, the product is widely used at the oil & gas, distribution network automation and many other industrial communication systems.

Key Features
  1. Supports max 24 Gigabit ports, include 12 combo ports
  2. Supports DT-Ring ,DRP, RSTP/MSTP for network redundancy.
  3. EMC Level 3
  4. IP30 protection
  5. CE,FCC
Specifications
Software functions
Switching function Supports VLAN,PVLAN
Supports GVRP
Supports port aggregation.
Supports flow control.
Supports Rate limit
Supports broadcast storm suppression.
Redundancy protocol Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms.
Supports DRP and the recovery time<20 ms.
Supports RSTP/MSTP and compatible with STP.
Multicast protocol Supports IGMP snooping.
Supports static multicast.
Security Supports HTTPS/SSL.
Supports SSH.
Supports user grading.
Service quality management Supports ACL.
Support 802.1p(CoS),DSCP
Supports SP and WRR queuing.
Management and maintenance Supports Console, Telnet, and Web management methods.
Supports SNMPv1/v2c/v3 and can managed by Kyvision.
Supports file transfer and software update over SFTP,TFTP,HTTP,HTTPS.
Supports the IP/MAC address conflict alarm, power failure alarm, power alarm, port linkdown alarm, ring alarm
Supports port mirroring.
Supports Syslog.
Supports RMON
Supports LLDP.
Supports SNTP.
IP address management Supports DHCP server/snooping/client
Product Specifications
Technical specifications Standard
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T)
IEEE 802.3ab (1000Base-T)
IEEE 802.3ad (port aggregation)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3x (flow control)
IEEE 802.1p (priority)
IEEE 802.1Q (VLAN)
IEEE 802.1d(STP)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
Switch properties Priority queue 8
Number of VLANs 4K
VLAN ID 1~4093
Number of multicast groups 8K
MAC table 8K
Packet buffer 4Mbit
Packet forwarding rate 35.7Mpps
Switching delay <5μs
Interface Gigabit ports
1000Base-X, 100Base-FX, SFP port
10/100/1000Base-T(X), RJ45 port
Console port
RS232,RJ45
Alarm contact
3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 10A@1s, 60 W Max
LED LED on front panel
Alarm LED: Alarm
Running LED: Run
Power LED: PWR1, PWR2
Port LED: Link/ACT
Port speed LED: Speed
LED on rear panel
Port LED: Link/ACT
Port speed LED: Speed
Power Requirements Power input 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC)
Power terminal 5-pin 5.08 mm-spacing plug-in terminal block
Power consumption <42W
Overload protection Support
Reverse connection protection Support
Redundancy protection Support
Physical Characteristics Housing Metal
Cooling Natural cooling, fanless
Protection Class IP30
Dimensions
(W×H×D) 482.6mm×44mm×325mm
Weight < 10 Kg
Mounting 19 inch 1U rack mounting
Environmental limits Operating temperature -20C to +60C
Storage temperature -40C to +85C
Ambient Relative Humidity 5% to 95% (non-condensing)
Quality assurance MTBF 972889h
Warranty 5 years
Approvals CE,FCC
Industry standard EMI
FCC CFR47 Part 15,EN55022/CISPR22,Class A
EMS
IEC61000-4-2(ESD) ±6kV(contact),±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
IEC61000-4-4(EFT) Power Port:±2kV;Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM;Data Port:±2kV
IEC61000-4-6(CS) 10V(150kHz-80MHz)
IEC61000-4-8(power frequency magnetic field) 30A/m(cont.)
Machinery
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)

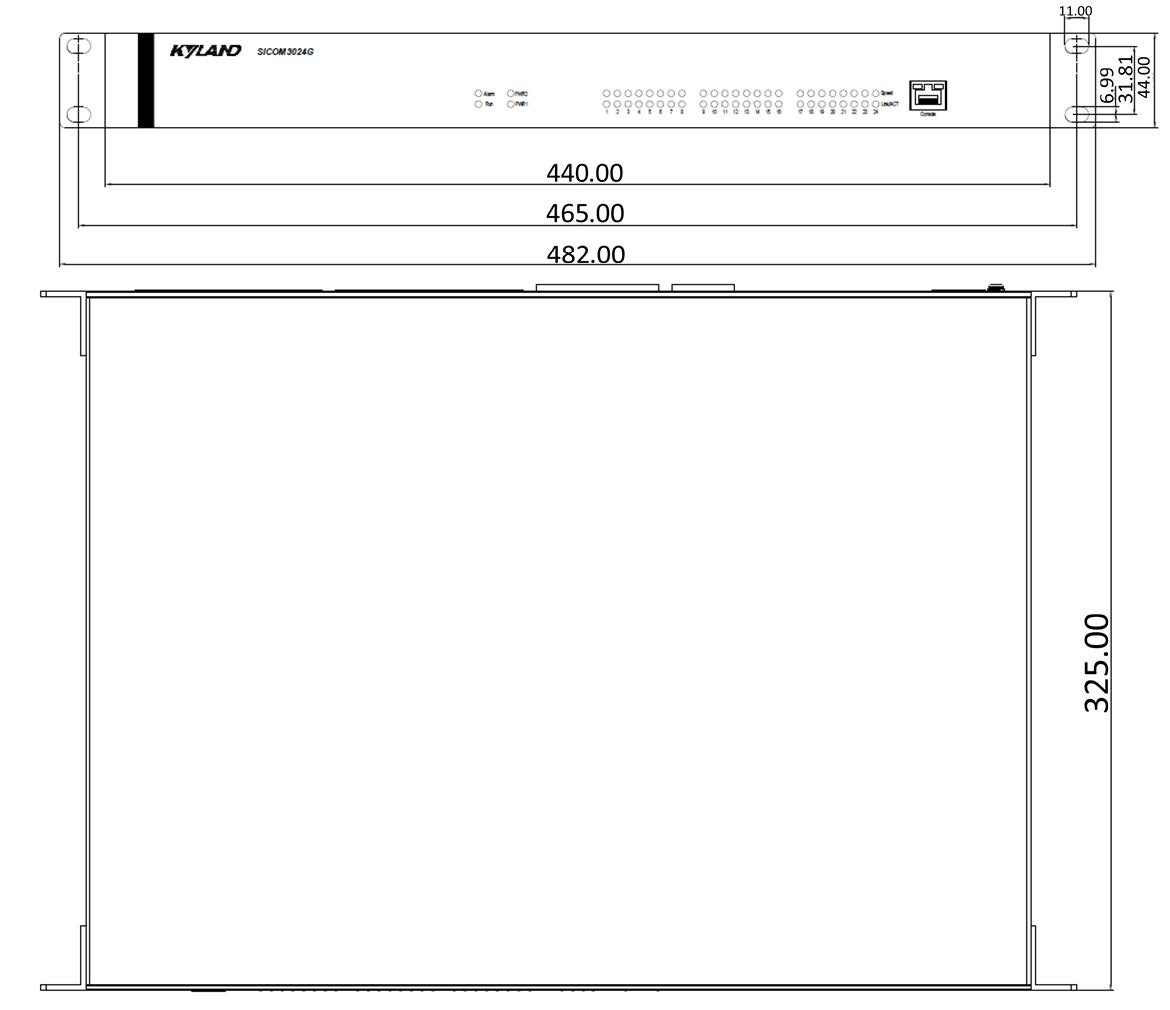

Mechanical Drawing

Ordering Information

Recommended model

Product Model

SICOM3024G-Ports-PS

Code definition

Code selection

Ports:

12G12GE=12×1000Base-X, 10/100/1000Base-T(X) combo ports; 12×10/100/1000Base-T(X) RJ45 ports

PS: power input

HV-HV=100-240VAC,50/60Hz;110-220VDC(85-264VAC/77-300VDC),redundant power supply



Accessories

Accessory Model

Description

Gigabit SFP module

See the selection table of industrial gigabit SFP module.

100M SFP module

See the selection table of industrial 100M SFP module.

DT-FCZ-RJ45-01

Single-port RJ45 dust plug
